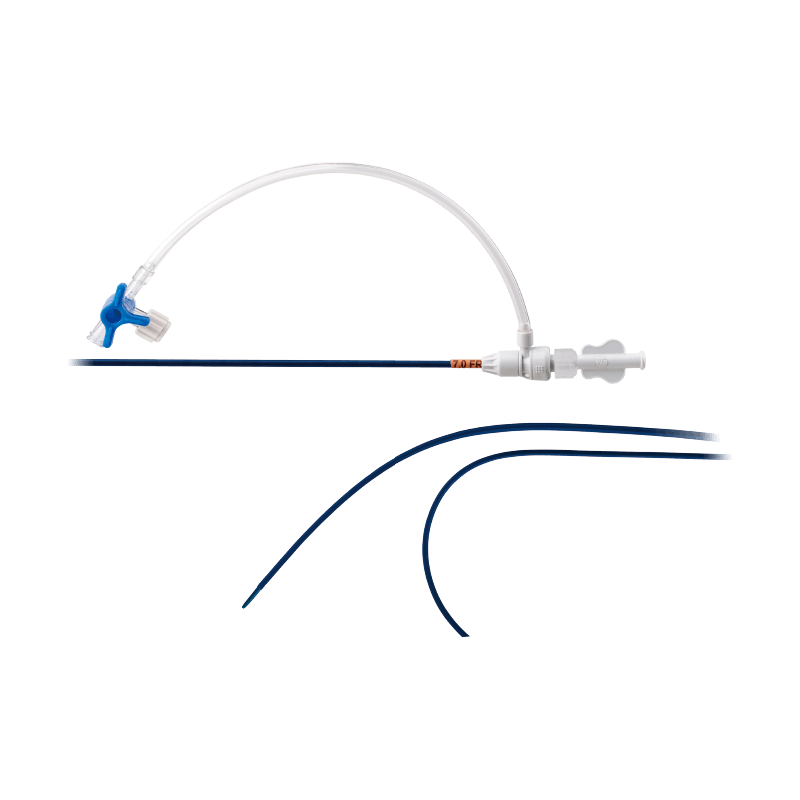

SteerEase Introducer
A delivery introducer designed to provide cardiovascular or peripheral vascular access for structural-heart device delivery, with four families and 32 catalogue configurations.
- 800 mm sheath length across all catalogue configurations
- 5F-14F nominal size range
- SFA: HeartR and Cera ASD/PFO occluders
- SFP: HeartR and Cera VSD/PDA occluders
- SFA-f: CeraFlex ASD/PFO closure systems
- SFP-f: CeraFlex PDA closure systems
- PTFE inner lumen, stainless-steel helical reinforcement, and PEBAX-coated surface
- Distal radiopaque marker band and haemostatic valve
REFSFA5F
SFA type, 5F
- Nominal size
- 5F
- Sheath inner diameter
- 1.79 mm
- Sheath outer diameter
- 2.23 mm
REFSFA6F
SFA type, 6F
- Nominal size
- 6F
- Sheath inner diameter
- 2.13 mm
- Sheath outer diameter
- 2.57 mm
REFSFA7F
SFA type, 7F
- Nominal size
- 7F
- Sheath inner diameter
- 2.46 mm
- Sheath outer diameter
- 2.90 mm
REFSFA8F
SFA type, 8F
- Nominal size
- 8F
- Sheath inner diameter
- 2.79 mm
- Sheath outer diameter
- 3.23 mm
REFSFA9F
SFA type, 9F
- Nominal size
- 9F
- Sheath inner diameter
- 3.13 mm
- Sheath outer diameter
- 3.59 mm
REFSFA10F
SFA type, 10F
- Nominal size
- 10F
- Sheath inner diameter
- 3.46 mm
- Sheath outer diameter
- 3.94 mm
REFSFA12F
SFA type, 12F
- Nominal size
- 12F
- Sheath inner diameter
- 4.13 mm
- Sheath outer diameter
- 4.63 mm
REFSFA14F
SFA type, 14F
- Nominal size
- 14F
- Sheath inner diameter
- 4.79 mm
- Sheath outer diameter
- 5.29 mm
REFSFP5F
SFP type, 5F
- Nominal size
- 5F
- Sheath inner diameter
- 1.79 mm
- Sheath outer diameter
- 2.23 mm
REFSFP6F
SFP type, 6F
- Nominal size
- 6F
- Sheath inner diameter
- 2.13 mm
- Sheath outer diameter
- 2.57 mm
REFSFP7F
SFP type, 7F
- Nominal size
- 7F
- Sheath inner diameter
- 2.46 mm
- Sheath outer diameter
- 2.90 mm
REFSFP8F
SFP type, 8F
- Nominal size
- 8F
- Sheath inner diameter
- 2.79 mm
- Sheath outer diameter
- 3.23 mm
REFSFP9F
SFP type, 9F
- Nominal size
- 9F
- Sheath inner diameter
- 3.13 mm
- Sheath outer diameter
- 3.59 mm
REFSFP10F
SFP type, 10F
- Nominal size
- 10F
- Sheath inner diameter
- 3.46 mm
- Sheath outer diameter
- 3.94 mm
REFSFP12F
SFP type, 12F
- Nominal size
- 12F
- Sheath inner diameter
- 4.13 mm
- Sheath outer diameter
- 4.63 mm
REFSFP14F
SFP type, 14F
- Nominal size
- 14F
- Sheath inner diameter
- 4.79 mm
- Sheath outer diameter
- 5.29 mm
REFSFA5F-f
SFA-f type, 5F
- Nominal size
- 5F
- Sheath inner diameter
- 1.79 mm
- Sheath outer diameter
- 2.23 mm
REFSFA6F-f
SFA-f type, 6F
- Nominal size
- 6F
- Sheath inner diameter
- 2.13 mm
- Sheath outer diameter
- 2.57 mm
REFSFA7F-f
SFA-f type, 7F
- Nominal size
- 7F
- Sheath inner diameter
- 2.46 mm
- Sheath outer diameter
- 2.90 mm
REFSFA8F-f
SFA-f type, 8F
- Nominal size
- 8F
- Sheath inner diameter
- 2.79 mm
- Sheath outer diameter
- 3.23 mm
REFSFA9F-f
SFA-f type, 9F
- Nominal size
- 9F
- Sheath inner diameter
- 3.13 mm
- Sheath outer diameter
- 3.59 mm
REFSFA10F-f
SFA-f type, 10F
- Nominal size
- 10F
- Sheath inner diameter
- 3.46 mm
- Sheath outer diameter
- 3.94 mm
REFSFA12F-f
SFA-f type, 12F
- Nominal size
- 12F
- Sheath inner diameter
- 4.13 mm
- Sheath outer diameter
- 4.63 mm
REFSFA14F-f
SFA-f type, 14F
- Nominal size
- 14F
- Sheath inner diameter
- 4.79 mm
- Sheath outer diameter
- 5.29 mm
REFSFP5F-f
SFP-f type, 5F
- Nominal size
- 5F
- Sheath inner diameter
- 1.79 mm
- Sheath outer diameter
- 2.23 mm
REFSFP6F-f
SFP-f type, 6F
- Nominal size
- 6F
- Sheath inner diameter
- 2.13 mm
- Sheath outer diameter
- 2.57 mm
REFSFP7F-f
SFP-f type, 7F
- Nominal size
- 7F
- Sheath inner diameter
- 2.46 mm
- Sheath outer diameter
- 2.90 mm
REFSFP8F-f
SFP-f type, 8F
- Nominal size
- 8F
- Sheath inner diameter
- 2.79 mm
- Sheath outer diameter
- 3.23 mm
REFSFP9F-f
SFP-f type, 9F
- Nominal size
- 9F
- Sheath inner diameter
- 3.13 mm
- Sheath outer diameter
- 3.59 mm
REFSFP10F-f
SFP-f type, 10F
- Nominal size
- 10F
- Sheath inner diameter
- 3.46 mm
- Sheath outer diameter
- 3.94 mm
REFSFP12F-f
SFP-f type, 12F
- Nominal size
- 12F
- Sheath inner diameter
- 4.13 mm
- Sheath outer diameter
- 4.63 mm
REFSFP14F-f
SFP-f type, 14F
- Nominal size
- 14F
- Sheath inner diameter
- 4.79 mm
- Sheath outer diameter
- 5.29 mm
