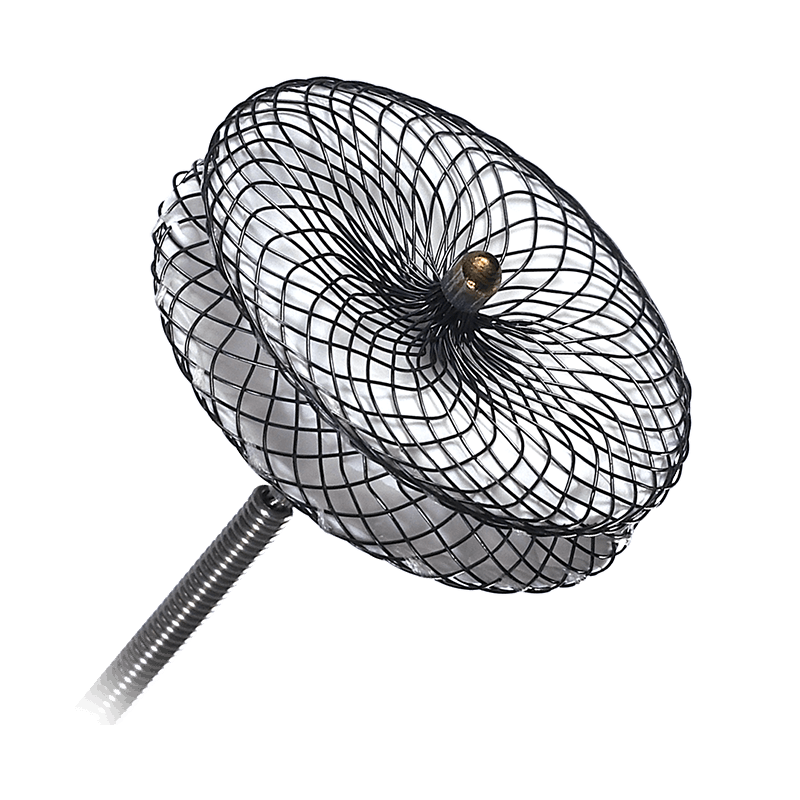

HeartR ASD Occluder
A self-expanding nitinol double-disc device for percutaneous transcatheter closure of atrial septal defects, available in 19 configurations covering 6 to 42 mm waist diameters.
- Self-expanding nitinol double-disc ASD occluder
- PET membranes in both discs and the connecting waist
- 19 configurations covering 6-42 mm waist diameters
- Common 4 mm waist length across all configurations
- SteerEase and Fustar sheath recommendations by size
REFXJFS06
6 mm waist
- Waist diameter
- 6 mm
- Right-disc diameter
- 14 mm
- Left-disc diameter
- 18 mm
- Recommended SteerEase sheath
- SFA7F
- Recommended Fustar sheath
- SVA7F-800
REFXJFS08
8 mm waist
- Waist diameter
- 8 mm
- Right-disc diameter
- 16 mm
- Left-disc diameter
- 20 mm
- Recommended SteerEase sheath
- SFA7F
- Recommended Fustar sheath
- SVA7F-800
REFXJFS10
10 mm waist
- Waist diameter
- 10 mm
- Right-disc diameter
- 18 mm
- Left-disc diameter
- 22 mm
- Recommended SteerEase sheath
- SFA7F
- Recommended Fustar sheath
- SVA7F-800
REFXJFS12
12 mm waist
- Waist diameter
- 12 mm
- Right-disc diameter
- 22 mm
- Left-disc diameter
- 26 mm
- Recommended SteerEase sheath
- SFA8F
- Recommended Fustar sheath
- SVA8F-800
REFXJFS14
14 mm waist
- Waist diameter
- 14 mm
- Right-disc diameter
- 24 mm
- Left-disc diameter
- 28 mm
- Recommended SteerEase sheath
- SFA9F
- Recommended Fustar sheath
- SVA9F-800
REFXJFS16
16 mm waist
- Waist diameter
- 16 mm
- Right-disc diameter
- 26 mm
- Left-disc diameter
- 30 mm
- Recommended SteerEase sheath
- SFA9F
- Recommended Fustar sheath
- SVA9F-800
REFXJFS18
18 mm waist
- Waist diameter
- 18 mm
- Right-disc diameter
- 28 mm
- Left-disc diameter
- 32 mm
- Recommended SteerEase sheath
- SFA9F
- Recommended Fustar sheath
- SVA9F-800
REFXJFS20
20 mm waist
- Waist diameter
- 20 mm
- Right-disc diameter
- 30 mm
- Left-disc diameter
- 34 mm
- Recommended SteerEase sheath
- SFA10F
- Recommended Fustar sheath
- SVA10F-800
REFXJFS22
22 mm waist
- Waist diameter
- 22 mm
- Right-disc diameter
- 32 mm
- Left-disc diameter
- 36 mm
- Recommended SteerEase sheath
- SFA10F
- Recommended Fustar sheath
- SVA10F-800
REFXJFS24
24 mm waist
- Waist diameter
- 24 mm
- Right-disc diameter
- 34 mm
- Left-disc diameter
- 38 mm
- Recommended SteerEase sheath
- SFA12F
- Recommended Fustar sheath
- SVB12F-800
REFXJFS26
26 mm waist
- Waist diameter
- 26 mm
- Right-disc diameter
- 36 mm
- Left-disc diameter
- 40 mm
- Recommended SteerEase sheath
- SFA12F
- Recommended Fustar sheath
- SVB12F-800
REFXJFS28
28 mm waist
- Waist diameter
- 28 mm
- Right-disc diameter
- 38 mm
- Left-disc diameter
- 42 mm
- Recommended SteerEase sheath
- SFA12F
- Recommended Fustar sheath
- SVB12F-800
REFXJFS30
30 mm waist
- Waist diameter
- 30 mm
- Right-disc diameter
- 40 mm
- Left-disc diameter
- 44 mm
- Recommended SteerEase sheath
- SFA12F
- Recommended Fustar sheath
- SVB12F-800
REFXJFS32
32 mm waist
- Waist diameter
- 32 mm
- Right-disc diameter
- 42 mm
- Left-disc diameter
- 46 mm
- Recommended SteerEase sheath
- SFA12F
- Recommended Fustar sheath
- SVB12F-800
REFXJFS34
34 mm waist
- Waist diameter
- 34 mm
- Right-disc diameter
- 44 mm
- Left-disc diameter
- 50 mm
- Recommended SteerEase sheath
- SFA14F
- Recommended Fustar sheath
- SVB14F-800
REFXJFS36
36 mm waist
- Waist diameter
- 36 mm
- Right-disc diameter
- 46 mm
- Left-disc diameter
- 52 mm
- Recommended SteerEase sheath
- SFA14F
- Recommended Fustar sheath
- SVB14F-800
REFXJFS38
38 mm waist
- Waist diameter
- 38 mm
- Right-disc diameter
- 48 mm
- Left-disc diameter
- 54 mm
- Recommended SteerEase sheath
- SFA14F
- Recommended Fustar sheath
- SVB14F-800
REFXJFS40
40 mm waist
- Waist diameter
- 40 mm
- Right-disc diameter
- 50 mm
- Left-disc diameter
- 56 mm
- Recommended SteerEase sheath
- SFA14F
- Recommended Fustar sheath
- SVB14F-800
REFXJFS42
42 mm waist
- Waist diameter
- 42 mm
- Right-disc diameter
- 52 mm
- Left-disc diameter
- 58 mm
- Recommended SteerEase sheath
- SFA14F
- Recommended Fustar sheath
- SVB14F-800
